The Helgoland Lighthouse and Old Images of Island Life before the Bombing
The Germans has a keen interest in both science and nature and appreciated Helgoland not only for
its scenic and peaceful qualities, but for its valuable environmental treasures. The island came into
their possession fairly after a territorial and trade exchange with Britain. One object of great marvel
and pride was the Helgoland Light, later destroyed by British bombing.
From the August 22, 1903 issue of Scientific American.

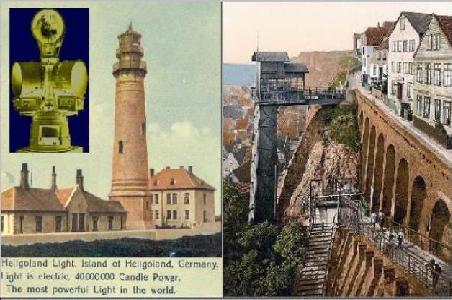

A new form of electric flashlight has been installed in the lighthouse tower at Heligoland by the
Siemens-Schukertwerke, of Nuremberg, Germany. There are three lower searchlights arranged 120
degrees apart, and another mounted upon the top, all operated automatically and driven by electric
motors. The carbons, which are fed by automatic mechanism are placed in a horizontal position, as is
usual with most large searchlights. The intensity of the light is 30 million candle power as a minimum,
and the maximum current used is 100 amperes. The light flashes occur every 5 seconds, and they
remain in one position only .1 second.

The three searchlights mounted on the lower platform 120 degrees apart have mirrors, 29 inches in
diameter and utilize a direct current of 34 amperes each, the platform revolving at the rate of four
revolutions per minute. The electrical apparatus was constructed by the
Elektricitats-Actiengesellschaft, formerly Schukert & Company of Nuremburg. The current is
supplied to the tower of lights by a lead iron-armored covered cable connected with the power
station.  The power plant consists of two steam engines directly connected to dynamos of 216
amperes capacity at a pressure of 75 volts. This new electric beacon is to take the place of the old
petroleum light that so long flashed out its danger signals at the mouth of the river Elbe.  The new
electric light is probably the most powerful at present in operation.  Apart from its enormous power,
the Heligoland lighthouse is noteworthy for the fact that a return has been made to the old form of
parabolic mirror, with a light in the focus instead of the usual Fresnel lenses and prisms.

The mirrors of the Heligoland light consist each of a piece of silvered glass.  No protection against
weather is provided in front of the light, and it is asserted that none is needed.  Besides the three
mirrors mentioned, a fourth mirror and lamp is provided, which will turn three times as rapidly, but
which, it is said, will be used only in cases of emergency.

The duration of one-tenth of a second for the flash, a characteristic of most French beacon lights, is
here adopted for the first time in Germany.  It is, however, a question whether three brief durations
have not been carried to an extreme.  Undoubtedly one-tenth of a second is sufficient to make the
maximum impression on the eye, when the light is brilliant.  But with a hazy atmosphere, and the
light much diminished, it is doubtful whether a longer duration should not be allowed.  The
experiment will be watched with great interest, both on account of the bold deviation from the
ordinary plan which has been so long followed, and also on the ground of economy, which is claimed
for the new method.  It is stated that on the first night of trial the light was seen at the pier at Busum,
a distance of 40 miles, which in itself seems sufficient to clear away all doubts of the visibility of a
flash of short duration. (end)
